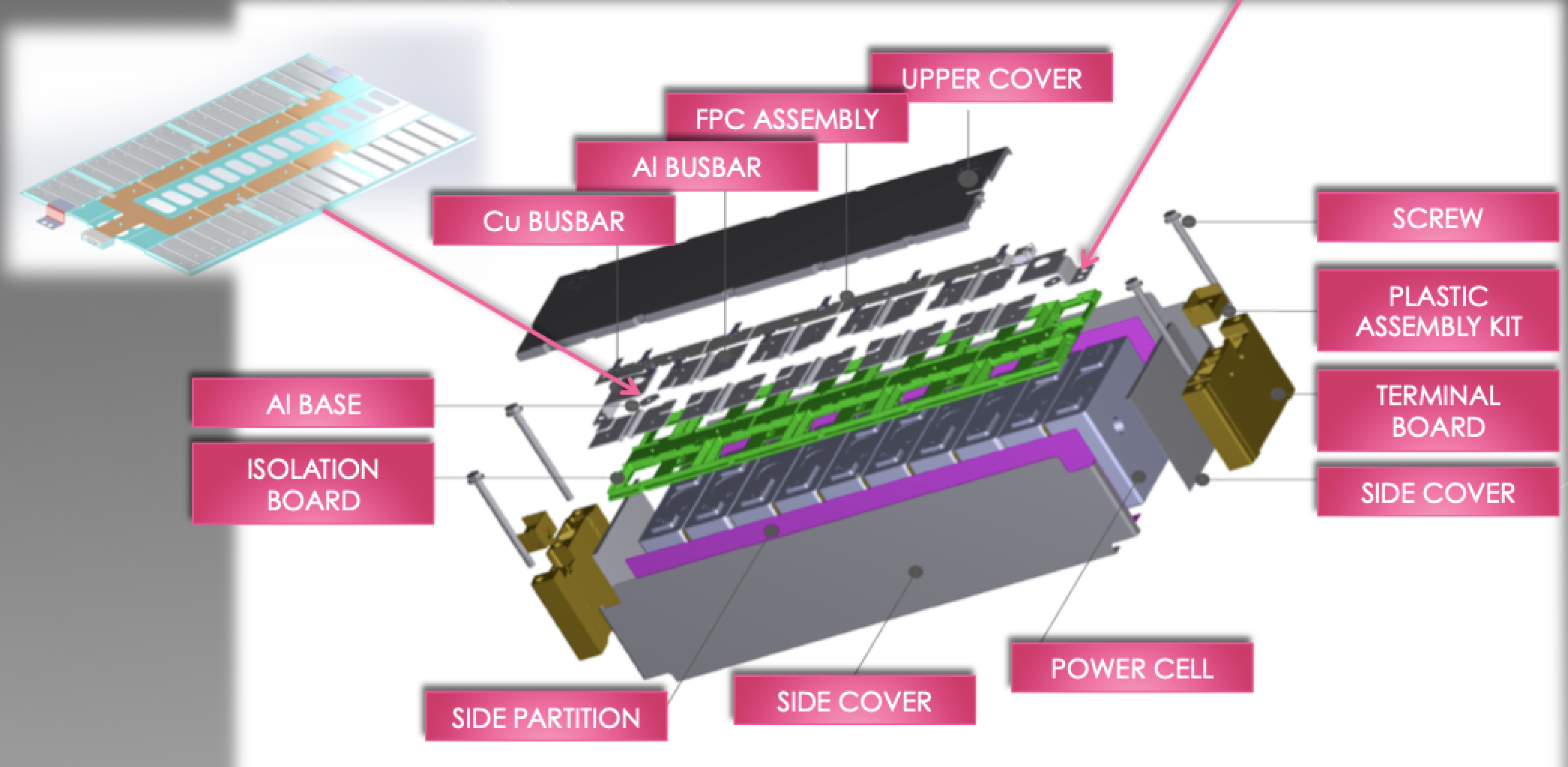

What is CCS

By using soldering, stamping, crimping etc. methods, assembling wire harness/FPC, plastic tray, output busbar, Aluminum busbar, thermo control terminal etc. into one single unit, by which having the function of collecting electric voltage and temperature data from cell module. Also providing easy assembly for Battery Packs



CCS插图2

What is CCS

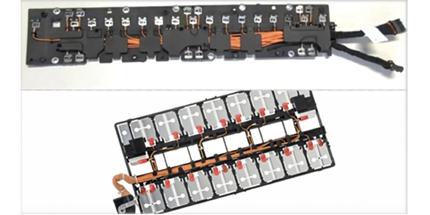

Wire Harness CCS

Ultrasonic bonding with wire & temperature transducer

Mature stamping & soldering techniques

Low Cost

Cannot design with FUSE protection


Wire Harness CCS

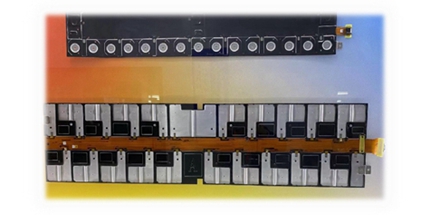

FPC + Injection Isolation CCS

Nickel plate with laser welding connection

Injection isolation board, Snap-on  aluminum bus bar for position fixing.

Can design with FUSE protection


FPC + Injection Isolation CCS

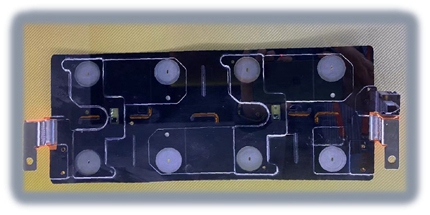

FPC + blister isolation CCS

Nickel plate using laser welding connection

Blister isolation board, Hot riveting aluminum bus bar & FPC for position fixing.

Light weight

Can design with FUSE protection


FPC + blister isolation CCS

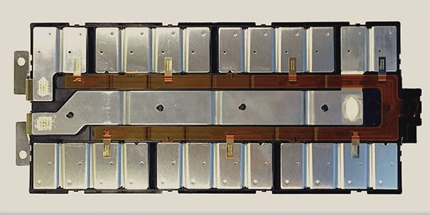

FPC + lamination isolation CCS

Nickel plate using laser welding connection

Whole sets are using hot press lamination fixing.

Light weight & highly integration

Can design with FUSE protection


FPC + lamination isolation CCS
